竹锅锅炉


--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

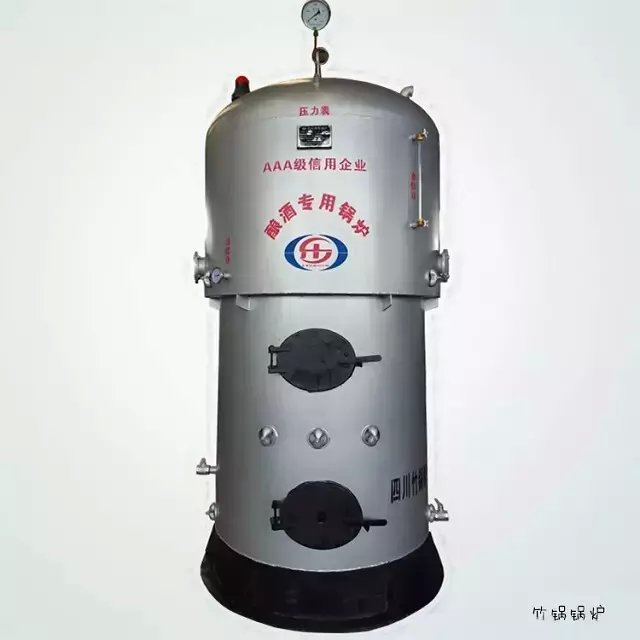

LSHC型酿酒专用锅炉产品简介

       LHSC系列酿酒专用锅炉是我公司最新开发的节能环保产品。锅炉为反烧式消烟除尘式结构。与同类产品相比,本公司产品上炉排选用大横水管作炉排管,边火管采用φ76mm无缝管绕炉膛一周,从而很好的避免了横水管结垢和堵塞,增加了锅炉的换热面积,提高了锅炉的热效率,延长了锅炉的使用寿命。锅炉燃烧可采用烟囱的自然抽风和引风机的机械引风两种形式。该锅炉具有热效率高,蒸汽产量足,与同类产品相比节约20~30%燃料,同时该产品还具有很好的消烟除尘功能。投放市场后受到广大客户的一致好评。


A product profile of the special boiler LSHC type wine brewing

    LHSC series wine is my company's latest development of special boiler energy conservation and environmental protection products. The boiler burning for anti type smoke prevention and dust control type structure. Compared with similar products, the company's products on the grate choose large horizontal pipe for grate tube, fire tube side the phi 76 mm seamless tube around a stove or furnace, thus good avoid horizontal pipe scale and plugging, increasing the boiler heat transfer area, improves the thermal efficiency of boiler, prolong the service life of the boiler. Boiler combustion can adopt the chimney of natural ventilation and induced draft fan mechanical wind two forms. The boiler has high thermal efficiency, the steam production, saving 20 ~ 30% compared with similar products of fuel, the product also has the very good function of smoke prevention and dust control at the same time. After the marketby the general customers the consistent high praise.

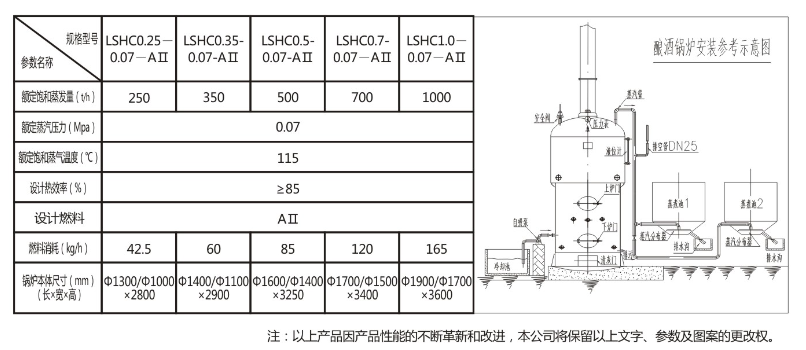

酿酒专用锅炉技术参数及安装示意图
